Hydraulically operated butt welding machine, suitable for PE, PP, PVDF and other thermoplastic pipes and fittings.
Hydraulically operated butt welding machine, suitable for PE, PP, PVDF and other thermoplastic pipes and fittings.The experience of 15 years in the welding of thermoplastic pipes and fittings, together with the ongoing exchange of information with our skilled clientele was instrumental in the design of such equipment.
The self aligning frame, and the compact dimensions, make the machines highly suitable for working in road constructions, ditches, aqueducts, gas ducts, sewers and irrigation systems.
on specific client requirements, machines can be modified in order to suit special requirements.
PT 355
Range 90mm to 355mm / 3" - 14"

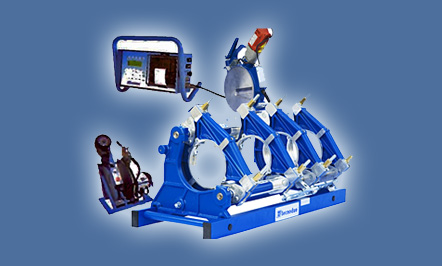

The basic machine is comprised of four clamps d. 355mm in light weight alloy, of which the third one is easily adjustable in order weld special pieces. The basic machine includes as well the automatic disconnecting device highly suited to detach the pipes from the heating mirror at the end of heating time (weight 96Kg)
Removable PTFE or Silverstone coated heating mirror with electronic thermostat and separate thermometer in order to continuously check the heating mirror's temperature (weight 19Kg, 230V 50Hz 3.0Kw)
Removable electric facing tool supplied complete with reducing gear, double cutting edged blades, safety micro switch allowing the engine to start only in operating position, a mechanical block device avoiding dislocation during the facing operation (weight 29Kg, 230V 50Hz 1.05Kw)
Support for facing tool and heating mirror suitable to carry the two parts and to hold them when not in use.
Hydraulic double throw pump with precision pressure gauge (class 1, 0 - 100 bar scale and 100mm face for easy reading) incorporates a device which maintains pre-set line pressure even when motor is not running. Allows continuous pressure adjustments and features flexible hoses with quick disconnect dry-lock couplings. Mounted in a tough protective frame, with two transport handles (230V 50Hz 0.74Kw, weight 28Kg)
Light weight aluminum reducing inserts (8 inserts per set including 6 inserts for pipes and 2 inserts for fittings) sizes 90, 110, 125, 140, 160, 180, 200, 225, 250, 280, 315mm (weight 118Kg). Diameters of rings required are to be specified at time of order.
Upper fitting clamp d. 355mm for short spigot fittings

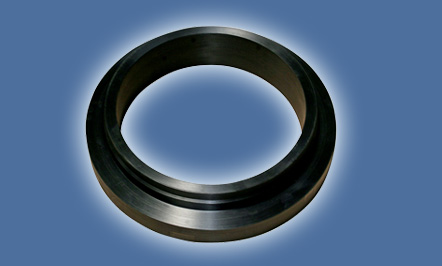

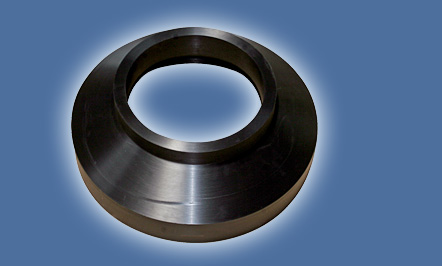

Stub end device with size range 90 to 355mm (weight 16Kg)
